9-19 9-26 Series High Pressure High Speed Blower Direct Motor In-Line Centrifugal Fan Centrifugal Ventilator Black Silver White

Brand Name : XIANRUN BLOWER

Model Number : ZR-HP SERIES

Certification : CE, ISO 9001

Place of Origin : XINXIANG

MOQ : 1

Price : 50-50000

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 10000

Delivery Time : 5-45DAYS

Packaging Details : WOODEN PACKING

Voltage : 220/380/415/440/450v

Blade material : Stainless Steel,Cast Iron,Steel Plate,Q345 (16Mn) manganese steel

Air volume : 800 - 90000m3 / h

Mounting : Free Standing,installed by screws

Type : Centrifugal Fan,Centrifugal ventilator

After-sales service provided : Engineers available to service machinery overseas,Online support

Speed : 2900 r/min

Electric current type : AC

Application : Air Blower,cement plant

Warranty : 1 Year

Material : Q345/stainless/Titanium Alloy/steel,Carbon Steel /Stainless Steel,cast iron,100% Aluminum

Color : Customer's Requirement,Black Silver White

Noise : 72dB,56-68 dB

Product name : 9-26 High Pressure Centrifugal Smoke Exhaust Ventilate Fan Blower,140mm centrifugal blower fan,Industry dust collector centrifugal exhaust fan blower,High Pressure Dust Collector Centrifugal Blower with Siemens Motor,9-19

Motor : China Top Brand

Feature : high efficiency,Low Noise Power Saving,easy installation,high pressure,High Performance

Pressure : High Pressure,3000~16000Pa,200~3220Pa,5335-6216 Pa,4603-4447Pa

Contact Now

9-19, 9-26 series high pressure centrifugal fan high speed blower direct motor in-line centrifugal fan

Structural form:


The high pressure centrifugal fan is a single suction type, and has 13 machine numbers (Na) : 4.4, 5.5, 5.6, 6.3, 7.1, 8.9, 10,11.2, 12.5, 14,16.

The in-line centrifugal fan can be made into two forms: right and left rotation. From the motor side, if the impeller rotates clockwise, it is called a right-handed fan, denoted by "right"; Counterclockwise rotation is called the left cyclone, denoted by "left".

The outlet position of the fan is indicated by the outlet Angle of the casing. The "left" and "right" can be made into 6 angles of 0°, 45°, 90°, 135°, 180° and 225°.

The transmission mode of the fan is type A (No.4~No.6.3) and type D (No.7.1 ~No.16)

Overall structure:

No.4-~No.6.3 is mainly composed of impeller, casing, air inlet, support, etc. No.7.1 ~ No.16 is mainly composed of impeller, casing, air inlet, transmission part, etc.

① Impeller:There are 12 fan blades in model 9-19 and 16 fan blades in model 9-26, all of which are forward bending blades. The highest circumferential velocity of the outer edge of the impeller diffuser shall not exceed 140m/s. After the impeller is formed, the static and dynamic balance is corrected, so the operation is stable.

② Chassis. The common steel plate was welded into the whole cochlear shell.

③ Air inlet. It is made into an overall structure of collecting flow shape and fixed on the front cover plate group with bolts.

④ Transmission part. It is composed of spindle, bearing box, coupling and so on. The spindle is made of high quality steel. The overall structure of the bearing box is made of ball bearings and lubricated with bearing grease.

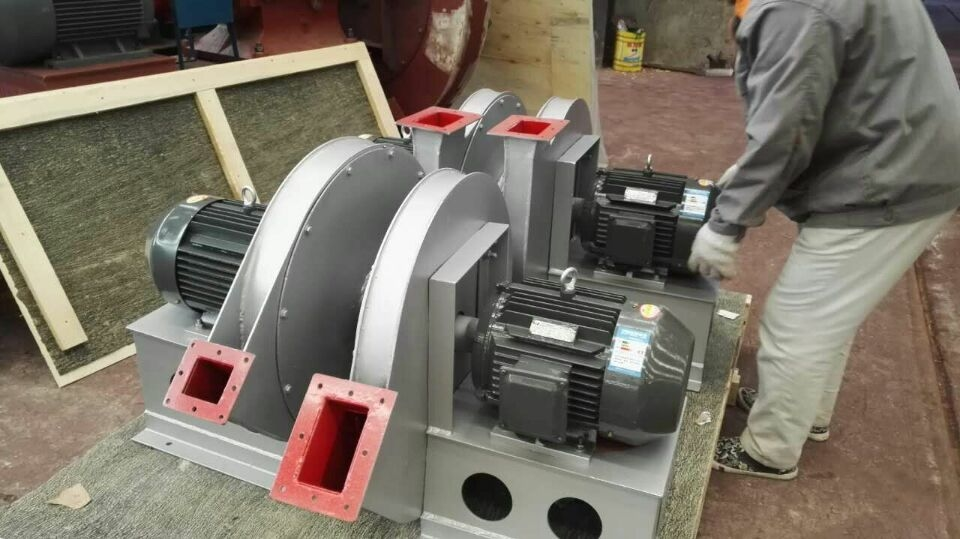

9-19 9-26 Series High Pressure High Speed Blower Direct Motor In-Line Centrifugal Fan Centrifugal Ventilator Black Silver White

9-19 9-26 Series High Pressure High Speed Blower Direct Motor In-Line Centrifugal Fan Centrifugal Ventilator Black Silver White

Key Features

  • Impeller diameter: 80~3500 mm
  • Speed of mainshaft: 760~2900 rpm
  • Pressure range: 9000~25425 Pa
  • Flow range: 3297~43305 m3/h
  • Air Temperature: 20~1000 Celsius degree

  • Material: Cast Iron, Carbon Steel, Stainless Steel.

  • Efficiency: 70%-90%

Applications

  • Cement
  • Industrial boiler
  • Power generation
  • Chemical processing
  • Combustion-support
  • Cooling systems
  • Corrosive gas
  • Dryer
  • Dust collection
  • Forced draft
  • Fume exhaust
  • General ventilation
  • Incineration
  • Induced draft

9-19 9-26 Series High Pressure High Speed Blower Direct Motor In-Line Centrifugal Fan Centrifugal Ventilator Black Silver White

9-19 9-26 Series High Pressure High Speed Blower Direct Motor In-Line Centrifugal Fan Centrifugal Ventilator Black Silver White
